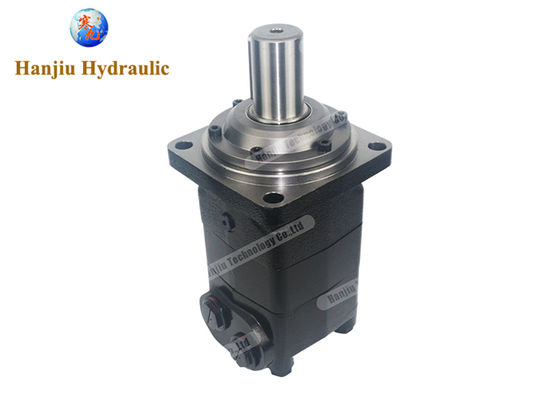

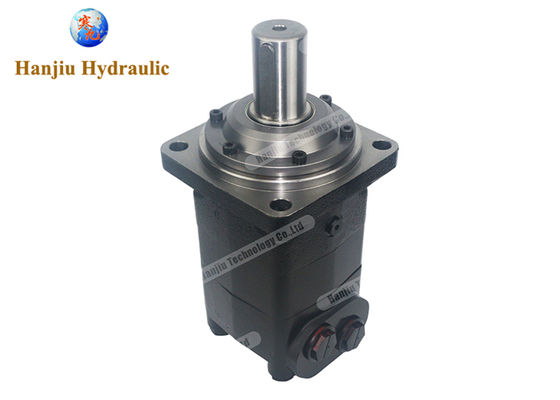

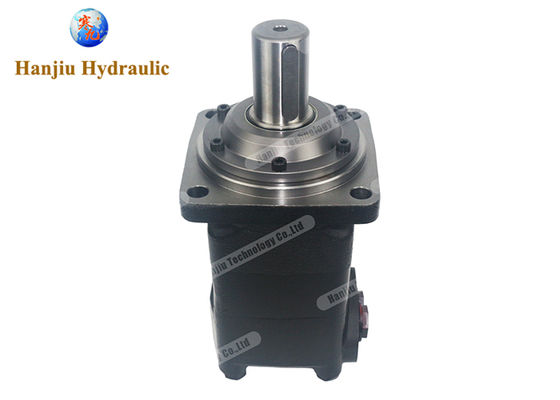

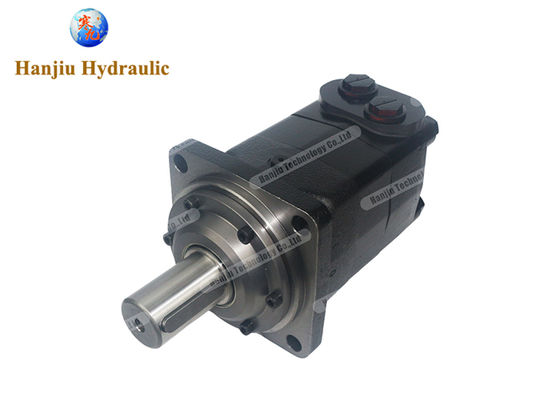

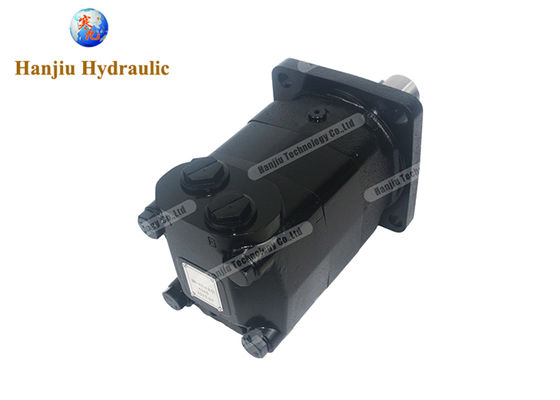

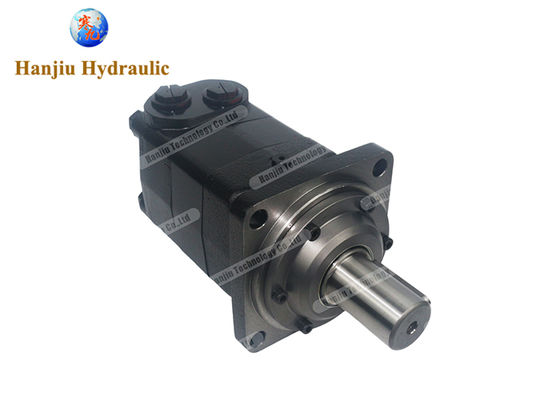

Model No.: BMV-800-4-A-S1-B
| Main Specifications: |
| Type |
BMV 315 |
BMV 400 |
BMV 500 |
BMV 630 |
BMV 800 |
BMV 1000 |
| Geometric displacement (cm3 /rev.) |
333 |
419 |
518 |
666 |
801 |
990 |
| Max. speed (rpm) |
cont. |
510 |
500 |
400 |
320 |
250 |
200 |
| int. |
630 |
600 |
480 |
380 |
300 |
240 |
| Max. torque (N·m) |
cont. |
920 |
1180 |
1460 |
1660 |
1880 |
2015 |
| int. |
1110 |
1410 |
1760 |
1940 |
2110 |
2280 |
| peak |
1290 |
1640 |
2050 |
2210 |
2470 |
2400 |
| Max. output (kW) |
cont. |
38 |
47 |
47 |
40 |
33 |
28.6 |
| int. |
46 |
56 |
56 |
56 |
44 |
40 |
| Max. pressure drop (MPa) |
cont. |
20 |
20 |
20 |
18 |
16 |
14 |
| int. |
24 |
24 |
24 |
21 |
18 |
16 |
| peak |
28 |
28 |
28 |
24 |
21 |
18 |
| Max. flow (L/min) |
cont. |
160 |
200 |
200 |
200 |
200 |
200 |
| int. |
200 |
240 |
240 |
240 |
240 |
240 |
| Weight (kg) |
31.8 |
32.6 |
33.5 |
34.9 |
36.5 |
38.6 |
* Continuous pressure :Max. value of operating motor continuously.
* Intermittent pressure :Max. value of operating motor in 6 seconds per minute.
* Peak pressure:Max. value of operating motor in 0.6 second per minute.
|
Short introduction:
BMV-630 standard 4-hole flange motor is a high-displacement, high-torque cycloidal hydraulic motor that uses a standard 4-hole flange installation method. It is suitable for heavy-duty drive systems, especially in mobile equipment and engineering machinery. Its displacement is 630 mL/rev, with excellent low-speed performance and strong starting torque, suitable for direct drive wheels or tracks.
Technical features:
Large displacement, high torque output: BMV-630 has a displacement of up to 630 mL/rev, high output torque, and can easily cope with heavy-load starting, climbing and other working conditions.
Standard 4-hole flange installation: The internationally universal 4-hole mounting flange is used, which is convenient for docking with various mechanical structures and improves installation flexibility.
Stable low-speed operation: The cycloidal structure design makes the motor run smoothly at low speed, without creeping, and sensitive response.
High load capacity: The built-in heavy-duty roller bearing can directly withstand large axial and radial loads, suitable for direct drive of wheels or tracks.
Excellent sealing system: High-quality seals ensure that the motor operates reliably under high-pressure conditions, reduce leakage, and extend service life.
Application areas:
BMV-630 standard 4-hole flange motor is widely used in construction machinery (such as loaders, bulldozers), agricultural machinery (such as self-propelled sprayers), forestry equipment, sanitation vehicles and crawler transport equipment. It is particularly suitable for occasions that require high torque output, low-speed smooth operation and high load-bearing capacity, such as wheel drive, crawler drive, winch drive, etc.
Summary:
BMV-630 standard 4-hole flange motor has become the preferred product for heavy hydraulic drive occasions with its large displacement, high torque and standardized installation advantages. Its reliable performance, flexible application and excellent adaptability to working conditions make it play a key driving role in various types of mobile equipment.
